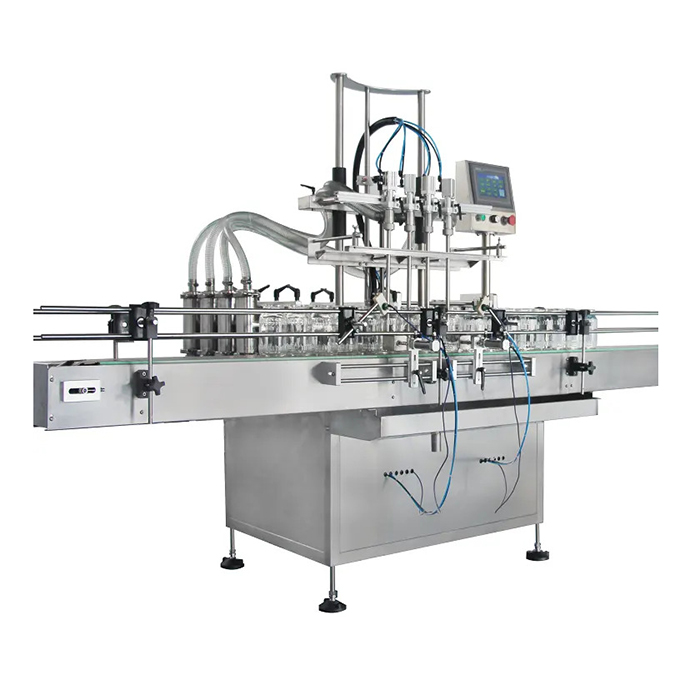

4 fej automata folyékony palack feltöltő gép

Alkalmazások:

4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.

Az elv és a jellemző:

The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .

Jellegzetes:

1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.

2. This machine is compact design, streamline bottle conveying, more stable.

3. No bottle no fill function.

4. Auto frequency conversion adjusting speed.

5. Auto display and count.

6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.

7. One machine can auto entry, filling adding capper, and sealing.

8. The whole machine is designed according to the requirements of GMP.

Fő műszaki előírások

Gyors részletek

Típus: Töltőgép
Állapot: Új
Alkalmazás: Ital, Vegyi, Orvosi
Csomagolás típusa: Palackok
Automatikus fokozat: Automatikus
Meghajtott típus: Elektromos
Feszültség: 220V / 110V 50 / 60Hz
Teljesítmény: ≤1,2KW
Származási hely: Sanghaj, Kína (szárazföld)
Márkanév: NPACK
Méretek (L * W * H): 2000 * 1200 * 1600 mm
Súly: 800kg
Vizsga: GMP
Vevőszolgálat: A mérnökök rendelkezésre állnak a gépek tengerentúli kiszolgálására
Termék neve: Folyékony palack töltőgép
Töltési tartomány: 20 ~ 1000ml
Tökéletes tartomány: 20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
Termelési kapacitás: 2400 ~ 3000 (palack / óra)
A pontosság mérése: ≤ ± 1
A támogatható arány: ≥99
The choice of cover: Burglarproof cover, screw cover

A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.

The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.

The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.

The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.

In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
